| Quantity: | |
|---|---|

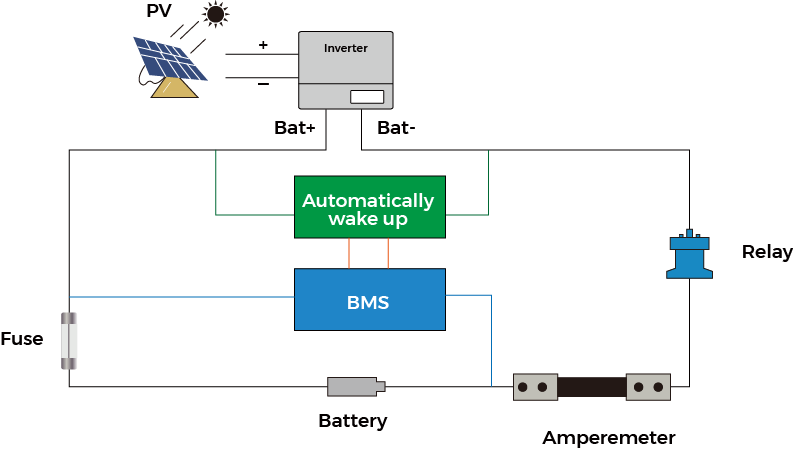

01 Power-on/off management (including automatic wake-up)
With our products, the customer only needs to check the inverter battery automatic start option. When the photovoltaic or grid starts the inverter again, the BAT port of the inverter will output a voltage of about 48V in a short time, and this voltage will act as the start of the BMS.

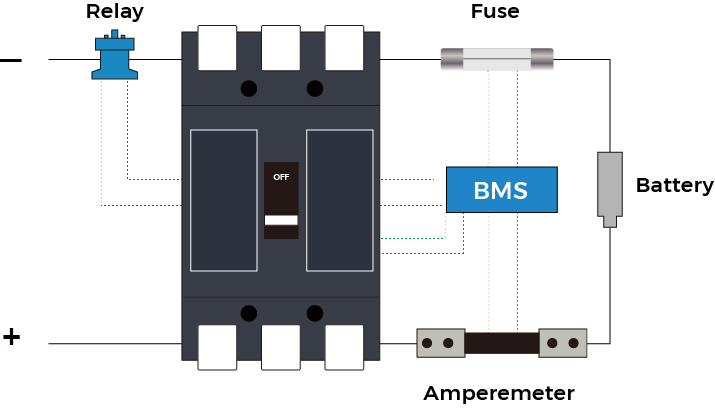

With our products, when a short circuit occurs, the circuit breaker acts as the primary protection, the fuse acts as the secondary protection, and the relay acts as the tertiary protection (final protection). Effectively ensure the safety of life.

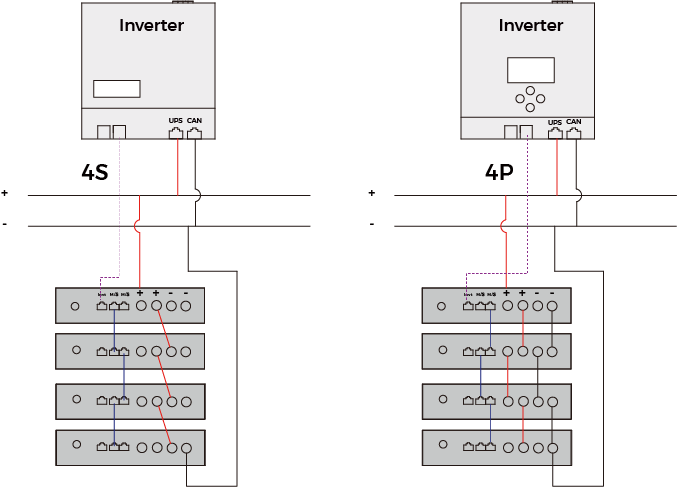

03 The same type of product can be connected in parallel or in series
With our products, when the battery is used in combination with a low-voltage inverter, the batteries can be connected in parallel, and the number of batteries can be increased only according to the customer's capacity requirements; When used in combination with a high-voltage inverter, the batteries can be connected in series.

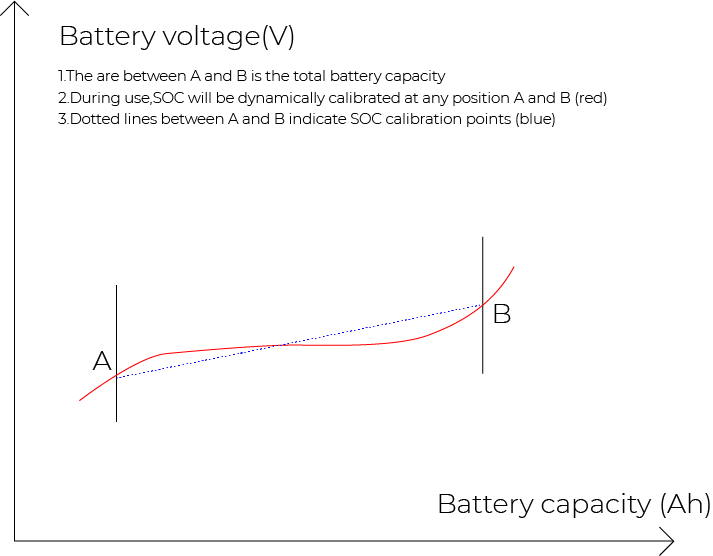

With our products, we collect data such as cell voltage, total voltage, and temperature data into the software. During operation, when the SOC error is found to be too big and the calibration conditions are met, the SOC Dynamic calibration will start (SOC will not suddenlly change ), and the SOC error will be infinitely reduced.

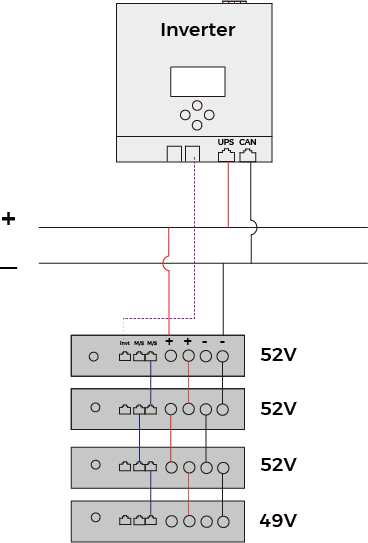

05 Parallel strategy
With our products, after adding a new battery of the same type to the original system, it can be used normally. Uhome's BMS has designed a parallel strategy to prevent large current shocks caused by paralleling. Reduce installation worker wait, operation time and improve operational safety.
06 Accuracy of current and cell voltage acquisition
Accurate acquisition and precise control, free from the EMC interference of the inverter

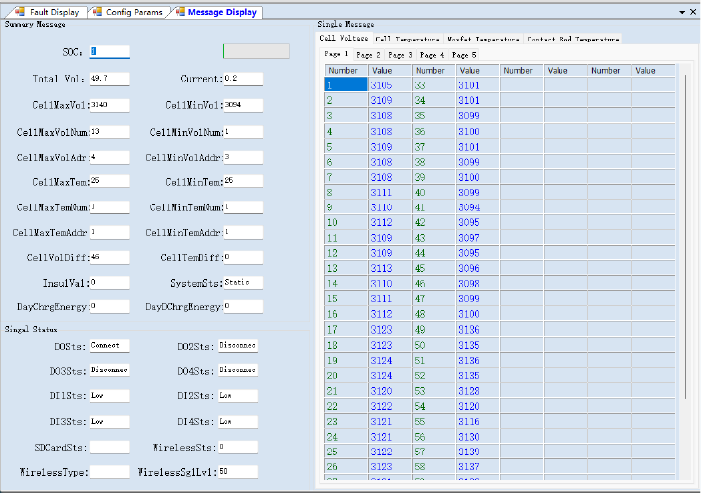

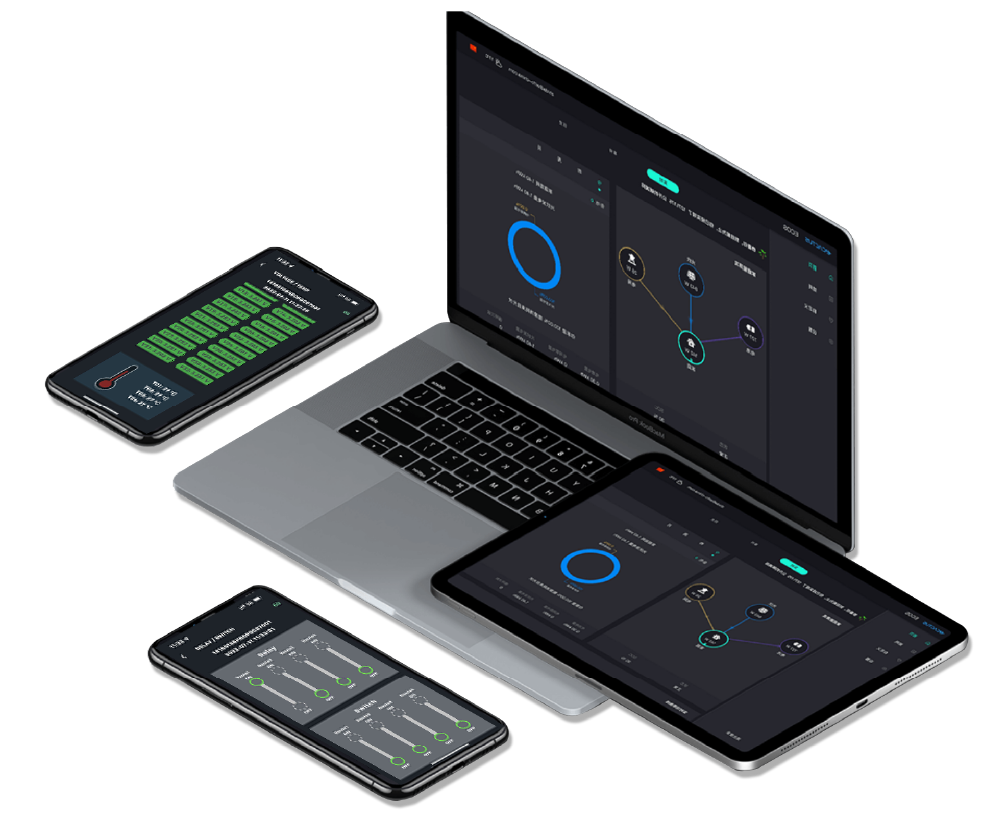

07 Remote Monitoring
2. Remote upgrade of all batteries firmware (When
the customer using multi batteries as one group.
Only need to configure the network for the master
battery. Then the engineers can upgrade them
together or separately);
3. Easy to troubleshoot problems in order to solve
after-sales technical problems;
4. Remote to set up data to meet your requirements.
